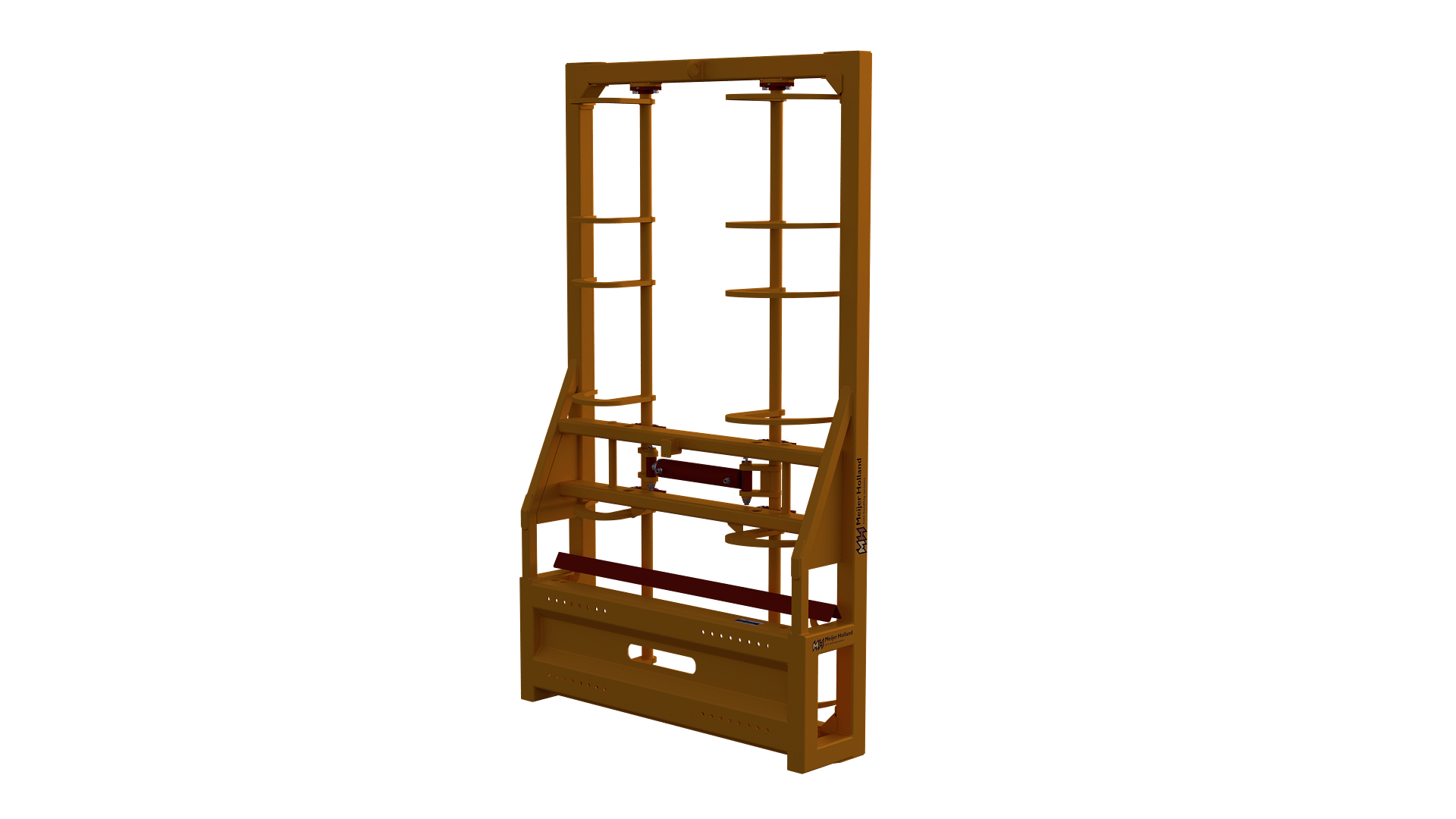

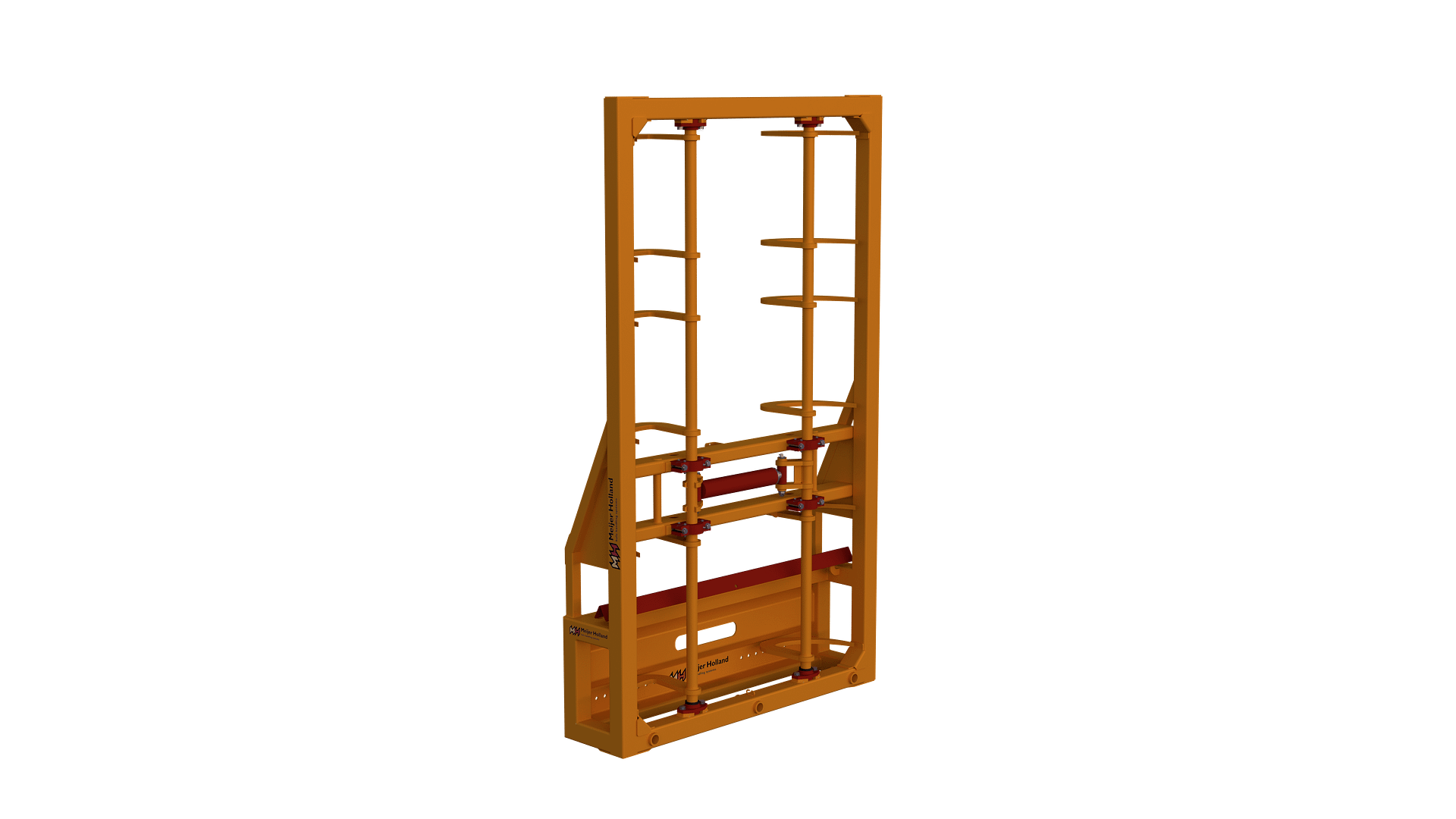

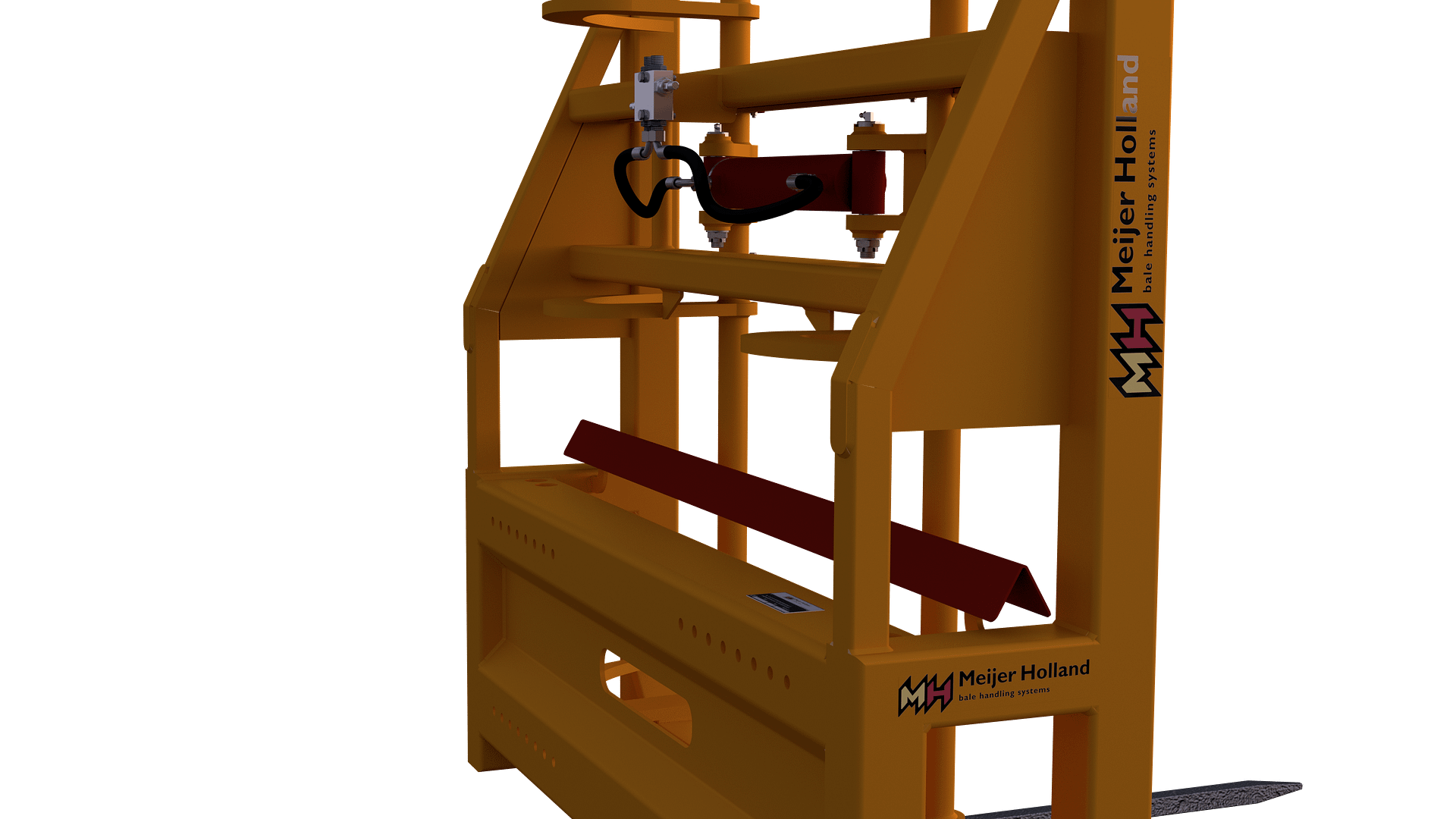

Description Fred 4-5 Heavy Duty bale grab

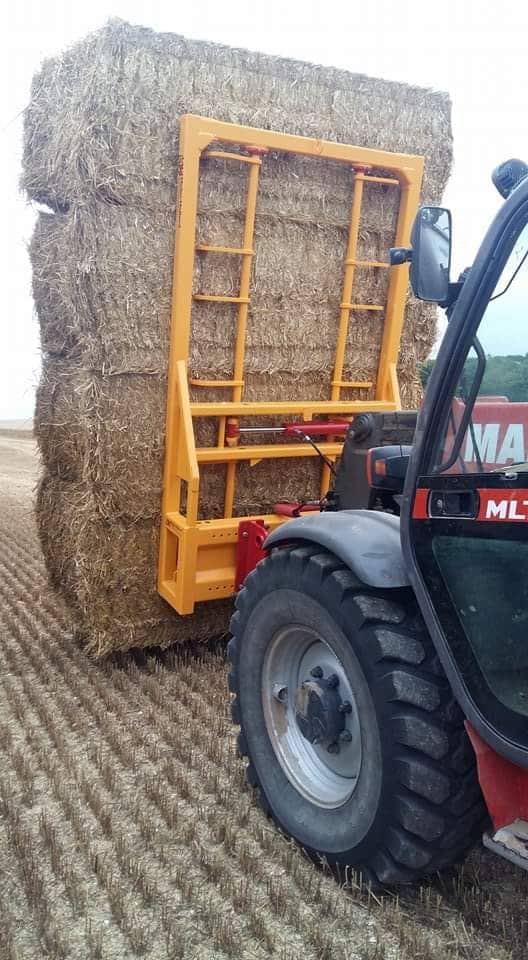

The Fred 4-5 Heavy Duty is specially made for intensive use. The grab picks up a maximum of four to five large straw or haybales. The grab is connected to the hydraulic system of a telescopic handler, front loader, wheel loader crane.

Suitable for

  • 4 bales of 90 cm high (tilted forward max. 3 bales)
  • 5 bales of 70 cm high (tilted forward max. 4 bales)
  • Also available for other bale sizes on request

Performed with

  • removable thick axles (Ø50 mm) with hooks, so that wearing parts can be replaced

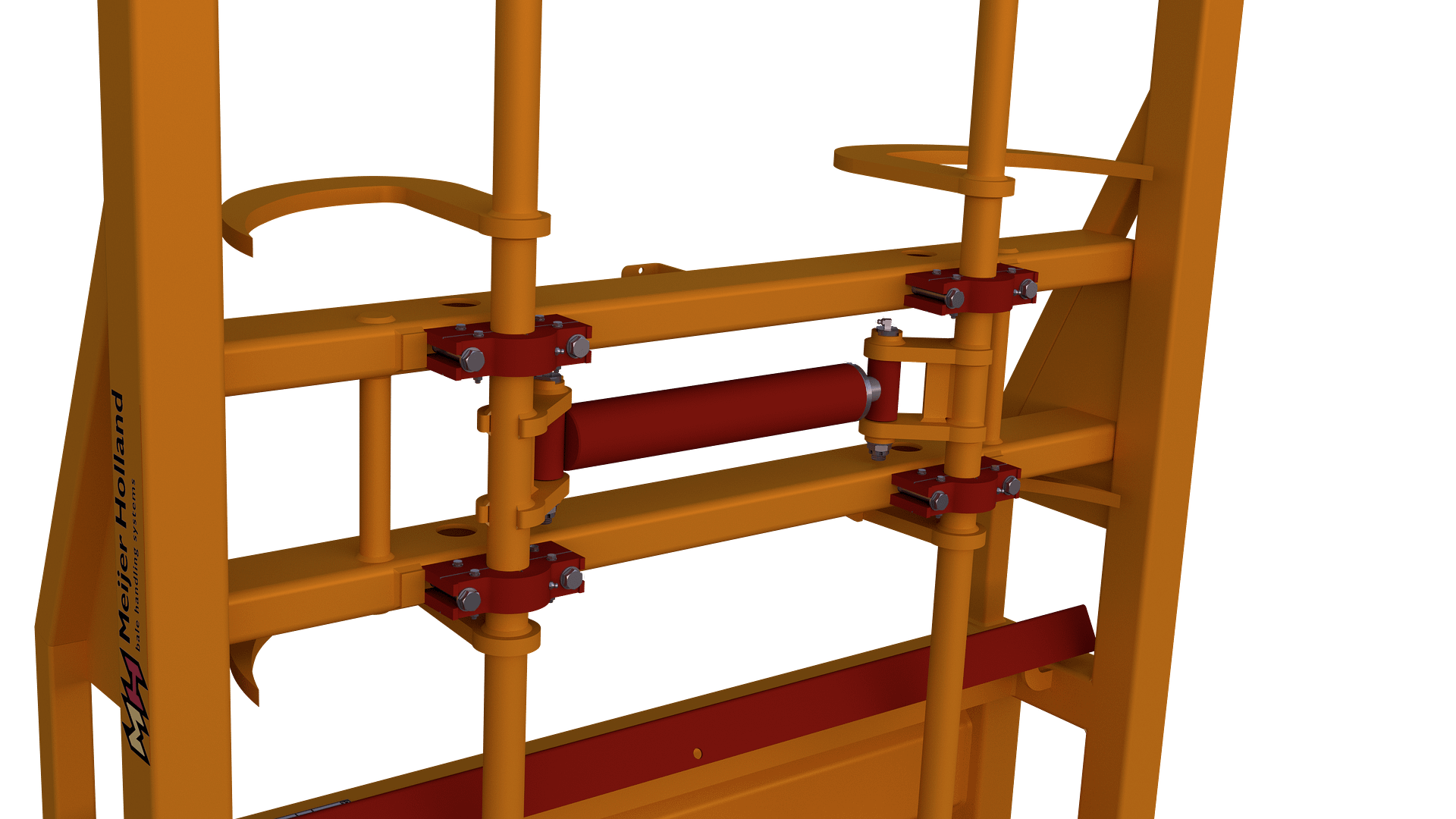

  • heavy cylinder
  • strong cylinder mounting with special bolt with lubrication groove
  • reinforced lower corners
  • 12 specially developed hooks made of high quality steel
  • 3 conical bushes for mounting the straight removable pins
  • overpressure relief valve

Advantages Fred 4-5 bale grab

  • the hooks turn deeply into the bales, and clamp and pull them tight against the main frame
  • when the grab is tilted forwards, the bales remain firmly clamped
  • suitable for intensive use

Optional

  • removable brackets

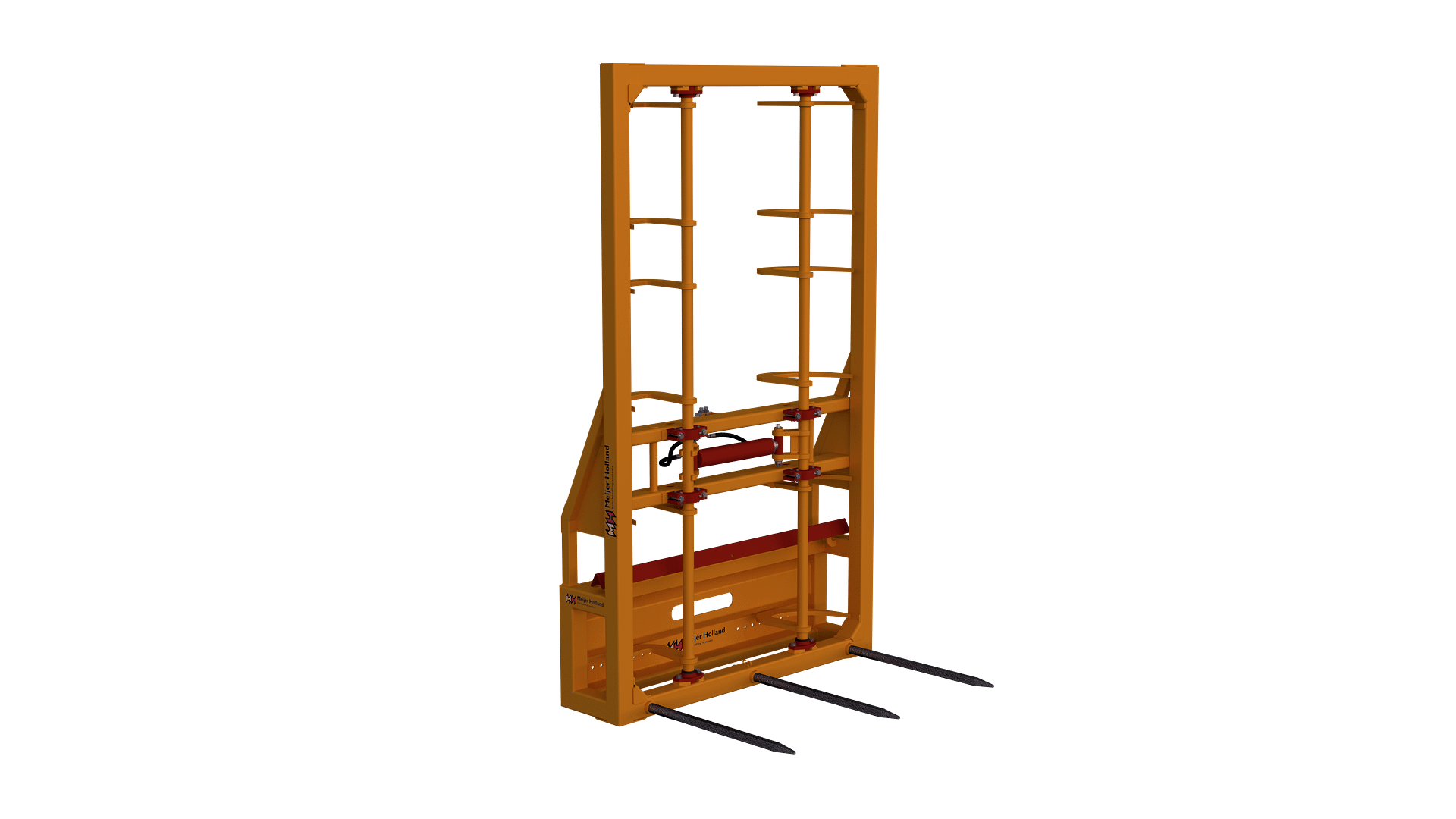

  • 2 or 4 removable pins
  • 2 hydraulic hoses and couplings
