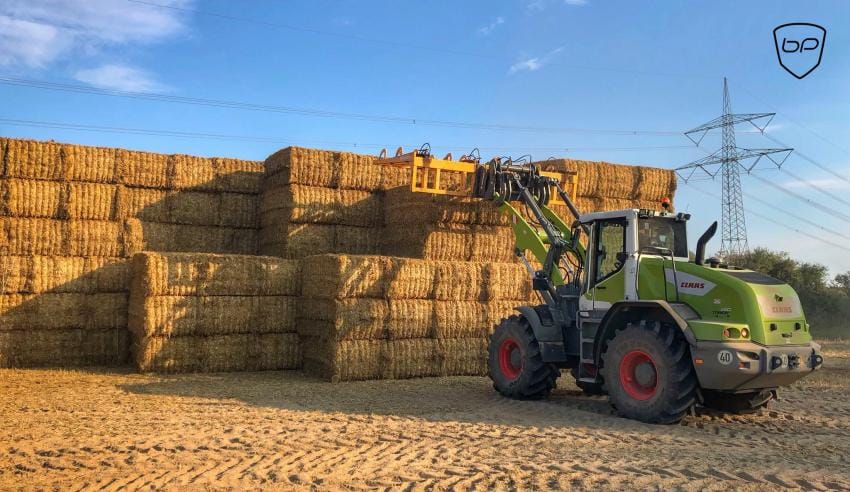

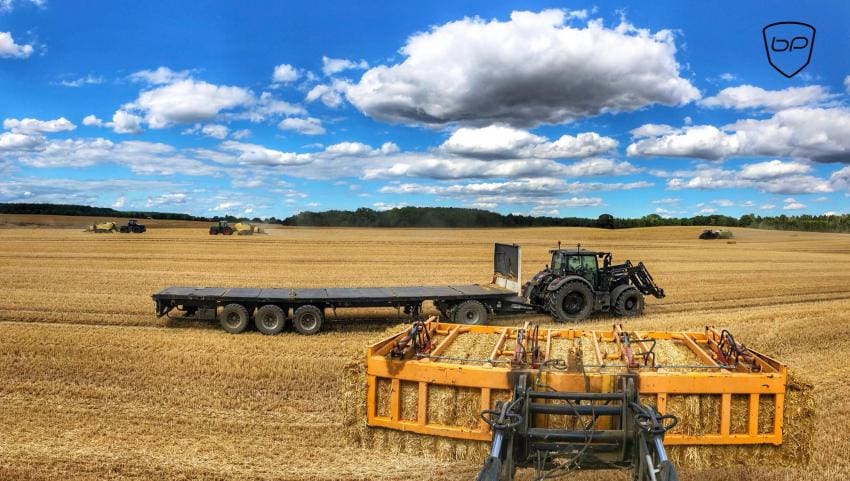

Description Rambo 4 bale grab
The Rambo 4 picks up a maximum of four large straw or hay bales longways. This bale grab is very strong and is only used in combination with a heavy wheel loader. The grab is connected to the hydraulic system of the wheel loader. The grab is not suitable for use on slopes.
Suitable for
- unloading bales
- 4 bales of 120 cm wide
- also available for other bale sizes on request
Performed with
- 16 specially developed hooks made of high quality steel
- 3 hydraulic automatic valves give the possibility that the bales can be grabbed separately
- 1 cylinder and 4 hooks for each bale
- a fixed frame and therefore not foldable
Advantages Rambo 4 bale grab
- the hooks turn deeply into the bales, and clamp and pull them tight against the main frame
Options
- removable brackets
- 2 hydraulic hoses and couplings
- overpressure relief valve
