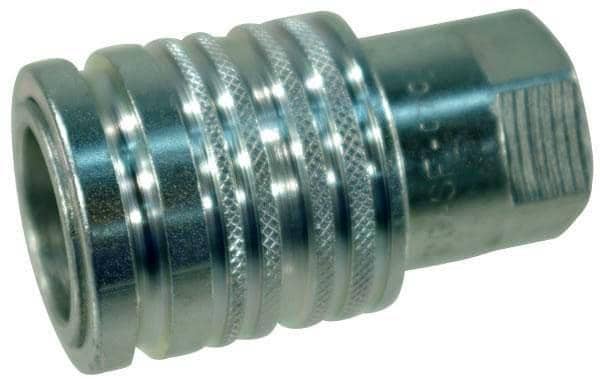

Description Flat face coupling female

type flat face
technical information because of their balanced contruction, quick release couplings with flat face of type SKS, can be coupled bij the so-called one-hand operation system. The sleeve of the body moves along automatically. During disconnection, the oil which is between the two parts is displaced back into the system. With this ingenious construction externally leakage is prevented and air is prevented from entering the system.
connection 1/2″ BSP
size 3/8.
PN (bar) 350
Q (l/min) 35
characteristic can not be (dis-)connected under pressure
matching contra coupling flat face coupling male

Do you have a question about Flat face coupling female?
