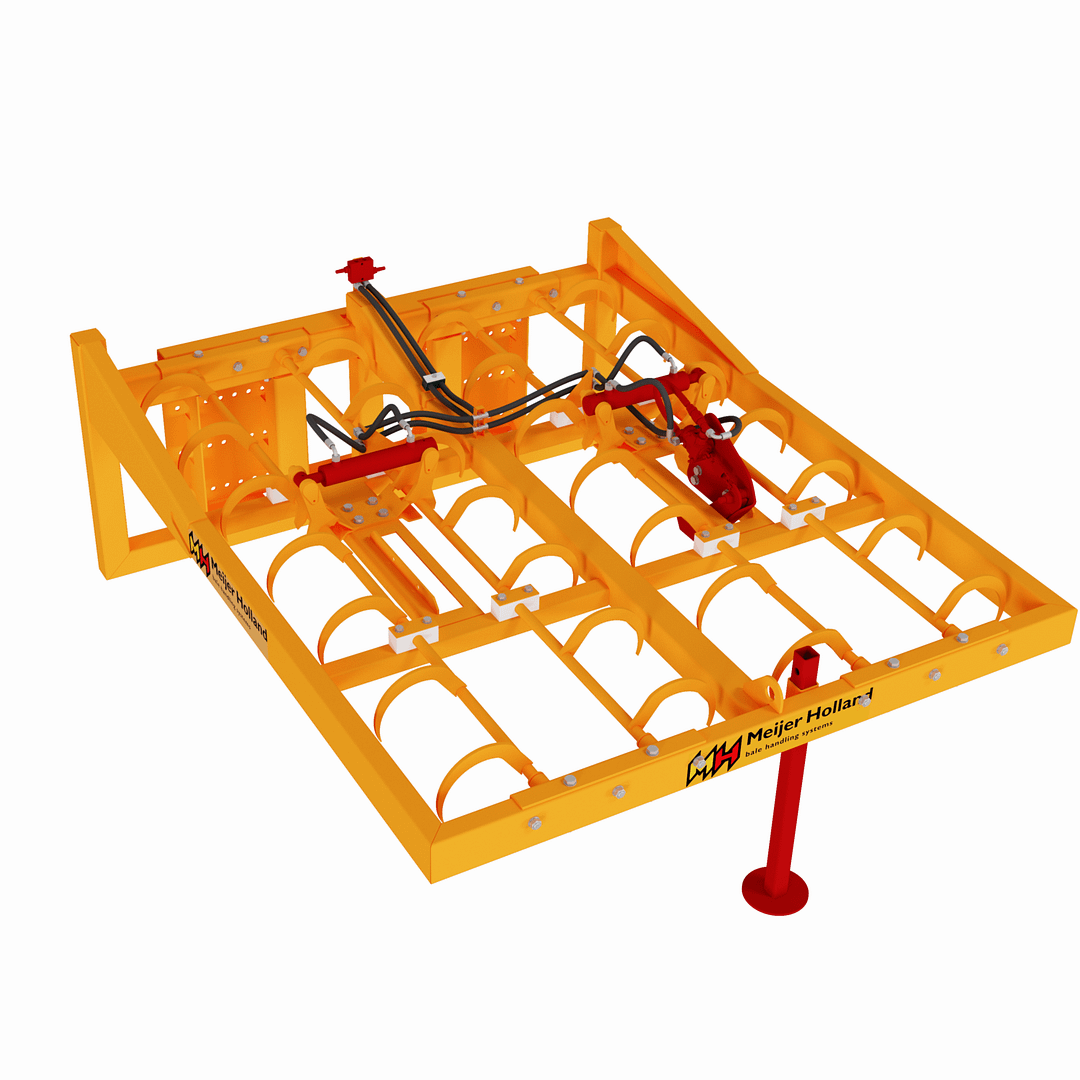

Description Meijer KB14 bundle grab
The Meijer KB14 bundle grab is designed to handle fourteen small straw or hay bales at once. The bales are clamped in two rows of seven in front of each other, in the width direction of the machine.

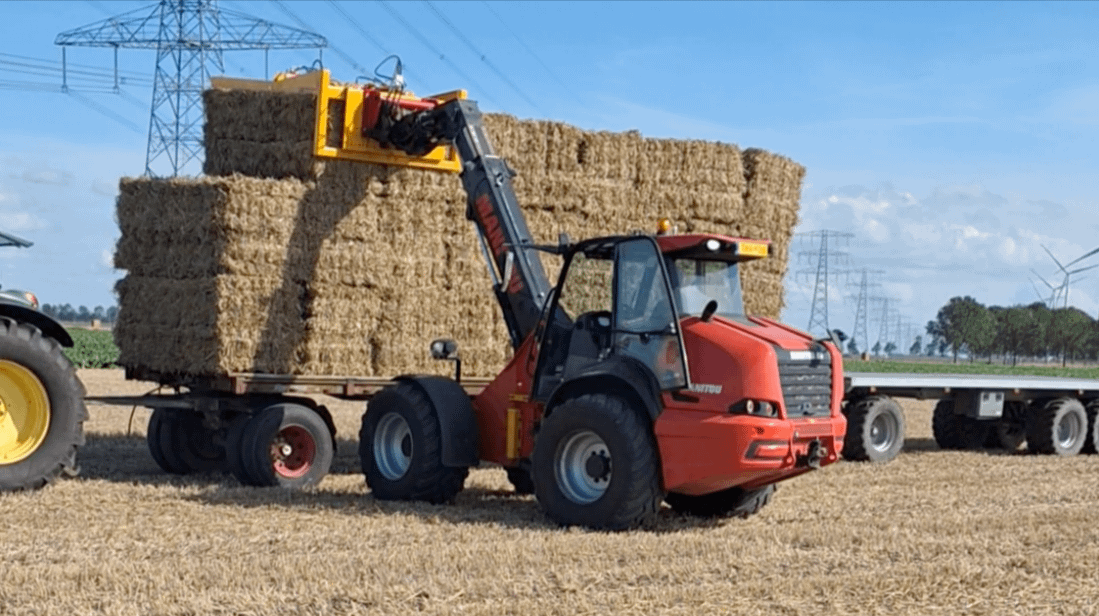

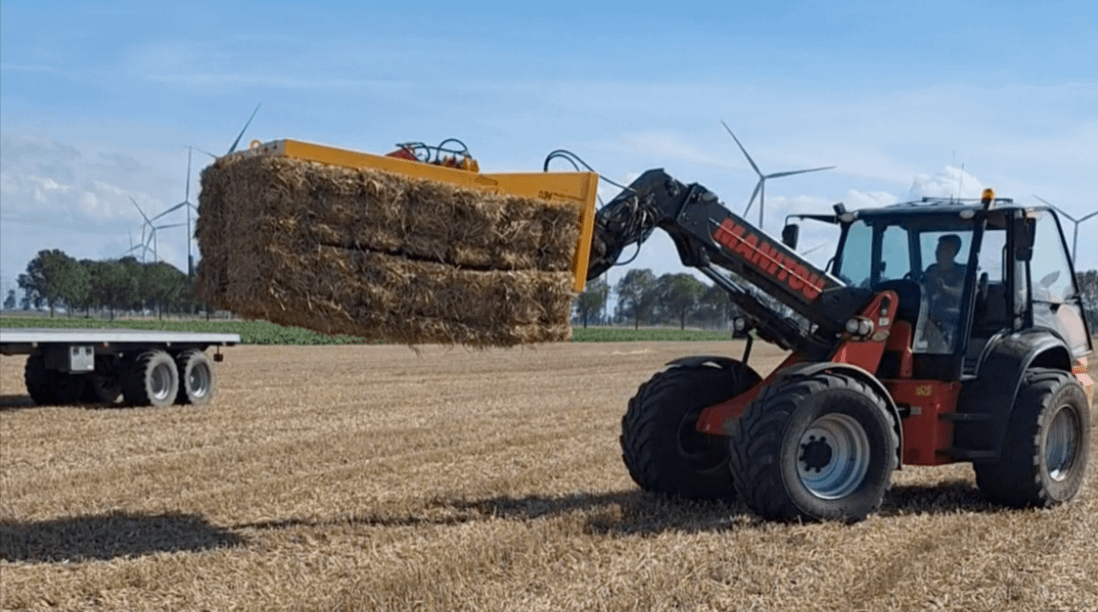

The grab connects to the hydraulic system of a telescopic handler, front loader, wheel loader or crane. It allows handling of two bundles at once, enabling a total of twenty-eight bales to be moved in a single operation.
Suitable for
- 28 bales with the dimensions:
- Length 80 to 120 cm
- Width 50 cm
- Height 40 cm
Performed with
- 28 specially developed hooks made of high-quality steel
- 1 hydraulic automatic for separate bundle handling
- 4 cylinders
- 2 hooks per bale
- Fixed frame, not foldable
Advantages of Meijer KB14 bundle grab
- Loading and unloading of bundled small bales
- Fast processing of small bales
- Processing capacity up to 2000 bales per hour
Options for Meijer KB14 bundle grab
Expandable with additional components.
- Removable brackets
- 2 hydraulic hoses and couplings
- Overpressure relief valve
Contact & manual
For more information or interested in custom solutions? Contact our specialists.
- Download the manual (PDF)
- Call us: +31 (0)50 – 3126448
- Email: info@meijerholland.com
- Or fill in the contact form
