Description Rambo 6KD foldable transverse bale grab

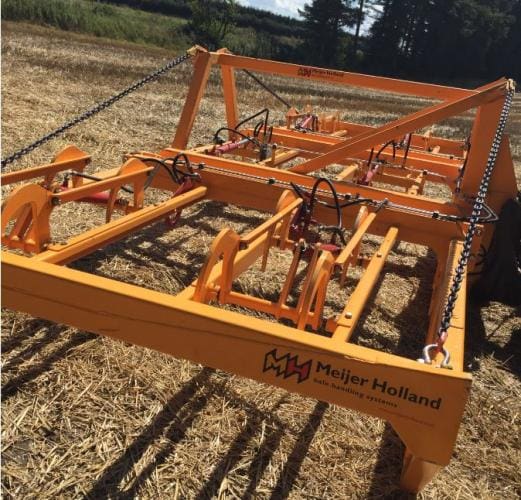

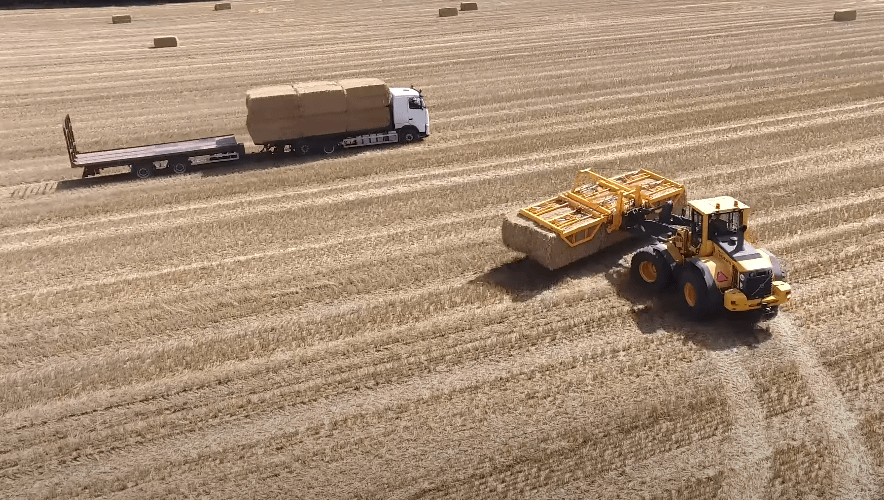

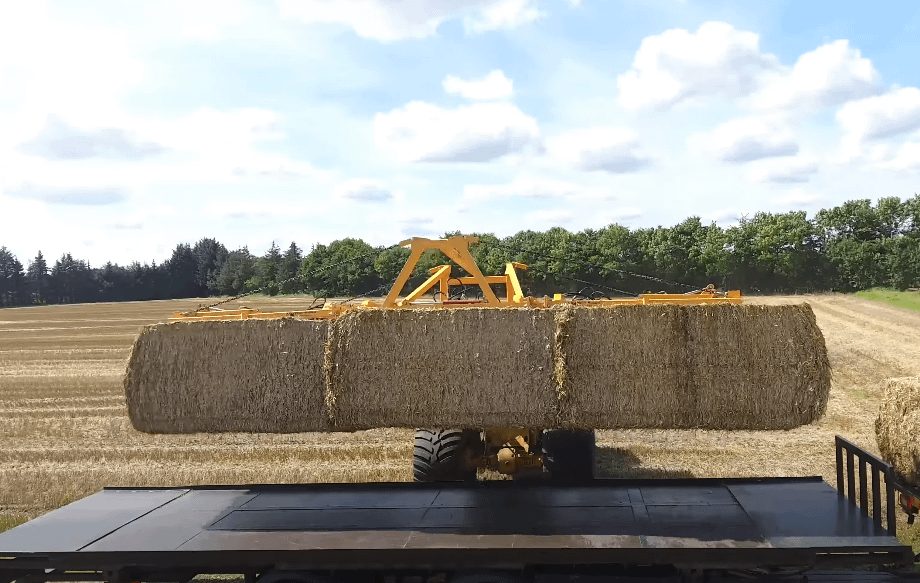

The Rambo 6KD bale grab picks up a maximum of six large straw or hay bales in the transverse direction and has a folding main frame. The bales are clamped in two rows of three bales in the width direction of the machine.

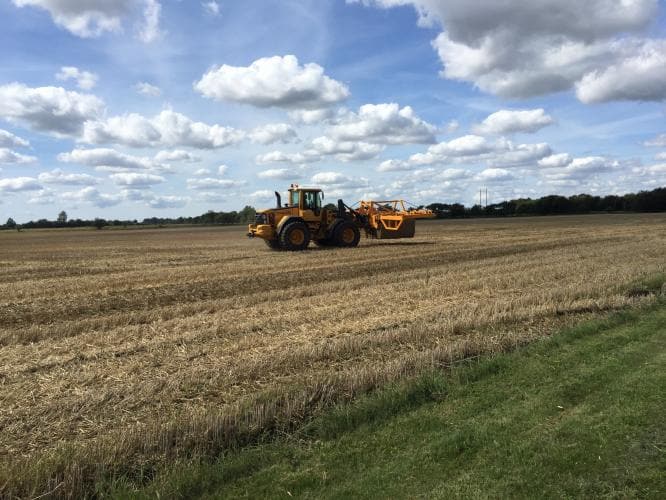

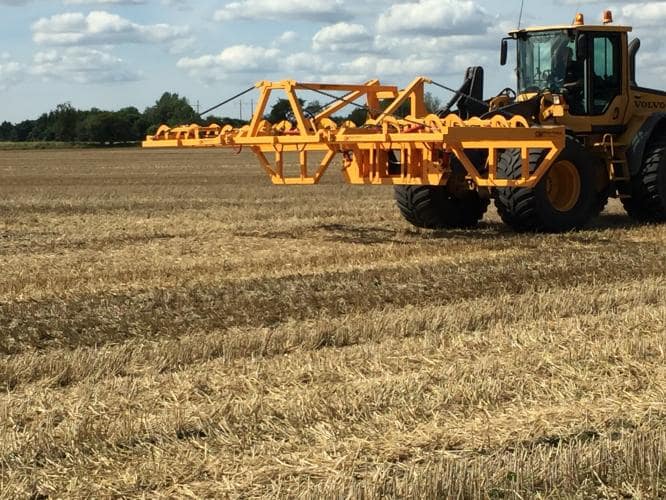

The grab is very strong and is only used in combination with a heavy wheel loader from approx. 14 tons. The grab is connected to the hydraulic system of the wheel loader and is not suitable for use on slopes.
Suitable for
- Unloading bales
- 6 bales of 120 cm wide
Performed with
- 24 specially developed hooks made of high quality steel
- 5 hydraulic automatic valves give the possibility that the bales can be grabbed separately
- 1 cylinder and 4 hooks for each bale
- Overpressure relief valve
- 6/2 valve 24DC for switching between folding and gripping the bales (excl. cabling and control)
Advantages of Rambo 6KD bale grab
- The hooks turn deeply into the bales, clamp and pull them tight against the main frame
Options for Rambo 6KD bale grab
Available with the following options.
- Removable brackets
- 2 hydraulic hoses and couplings
