Description Rambo 3 bale grab

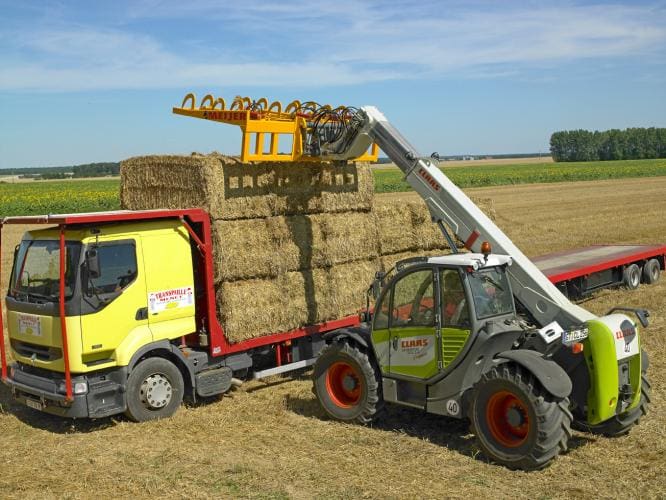

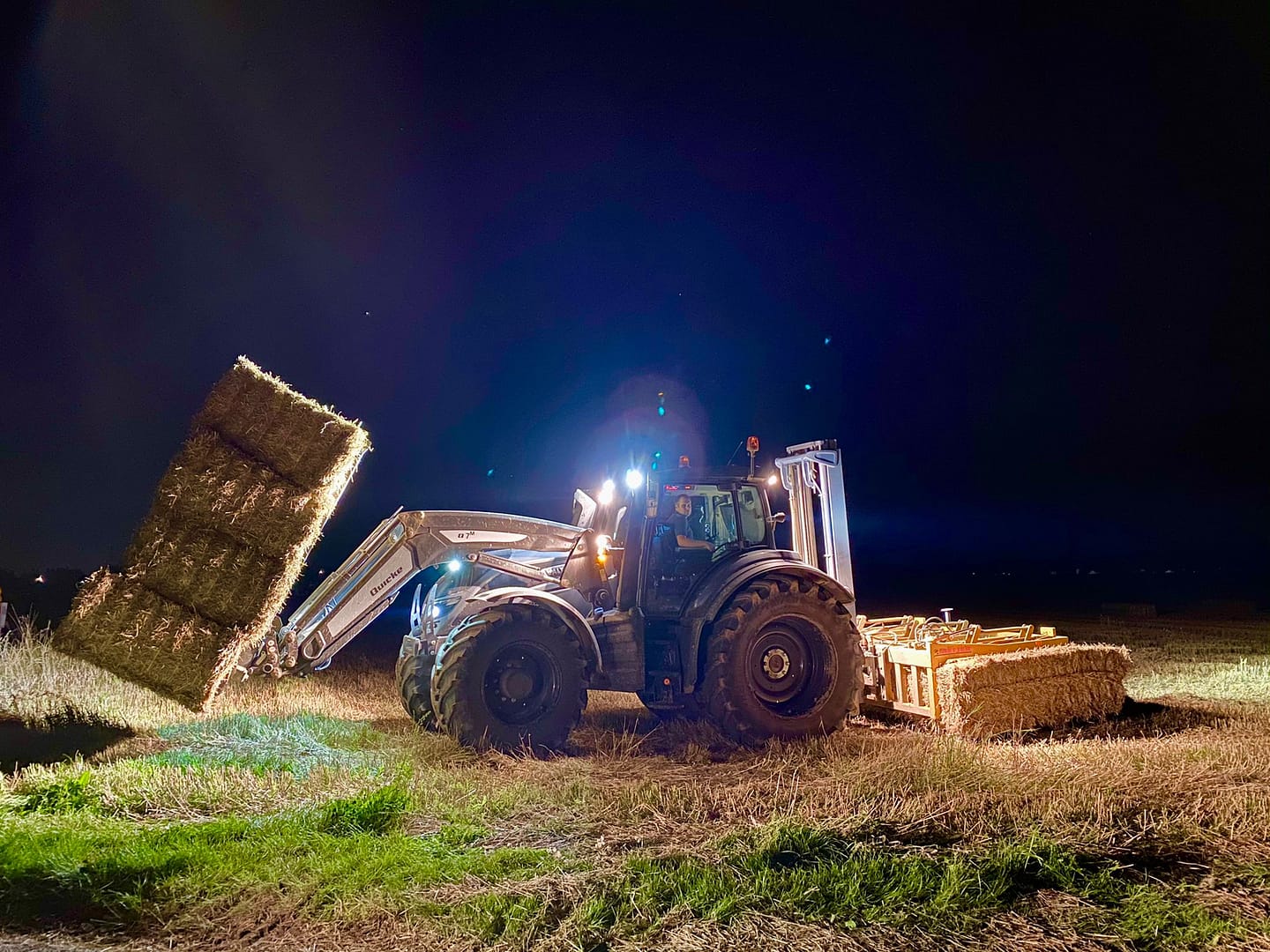

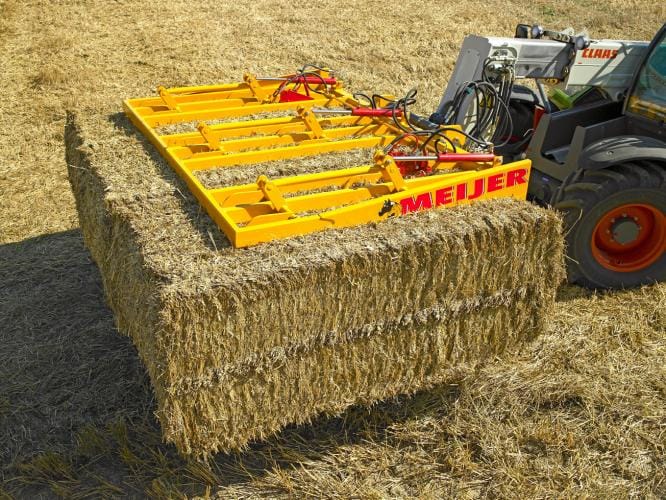

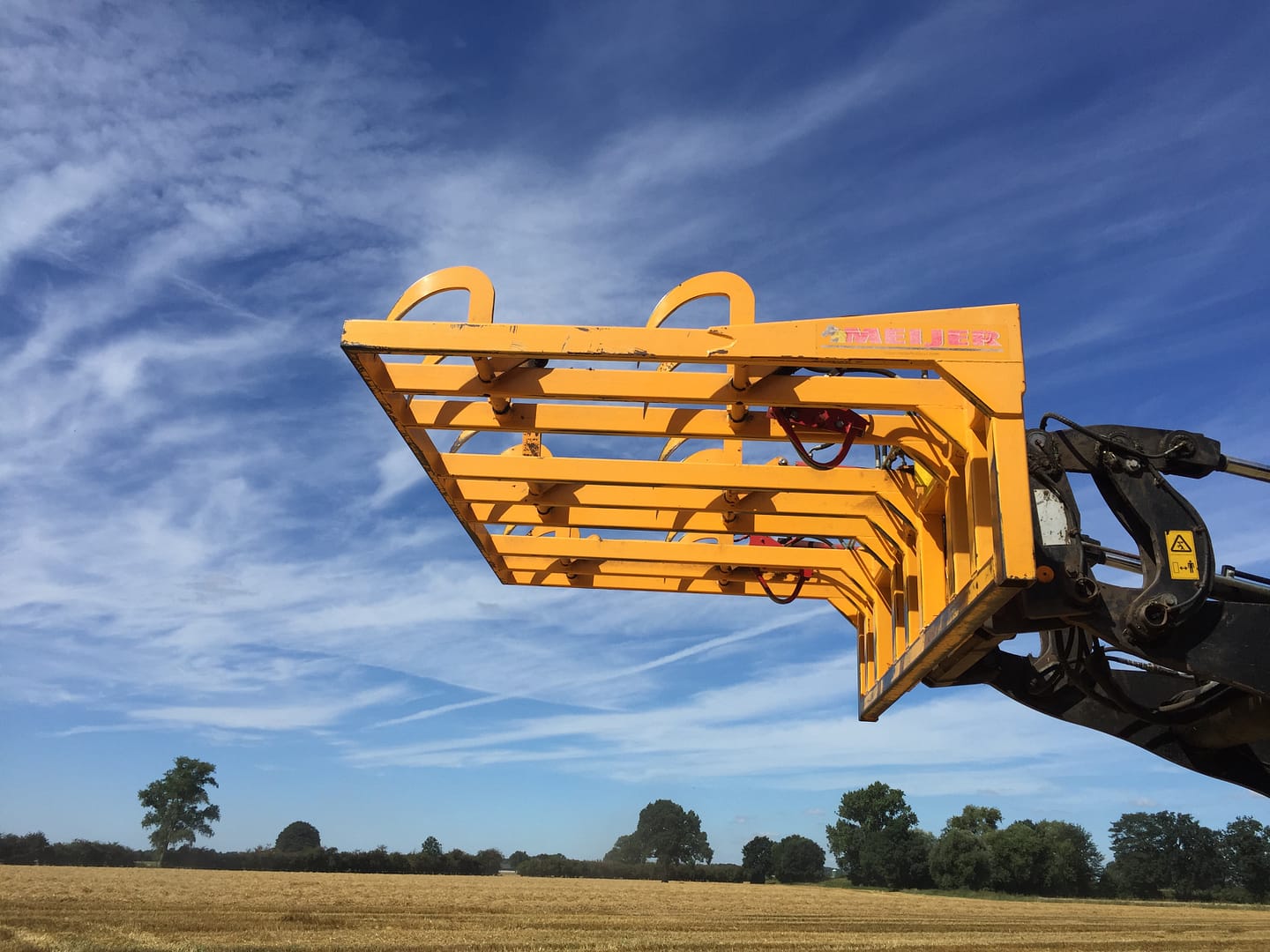

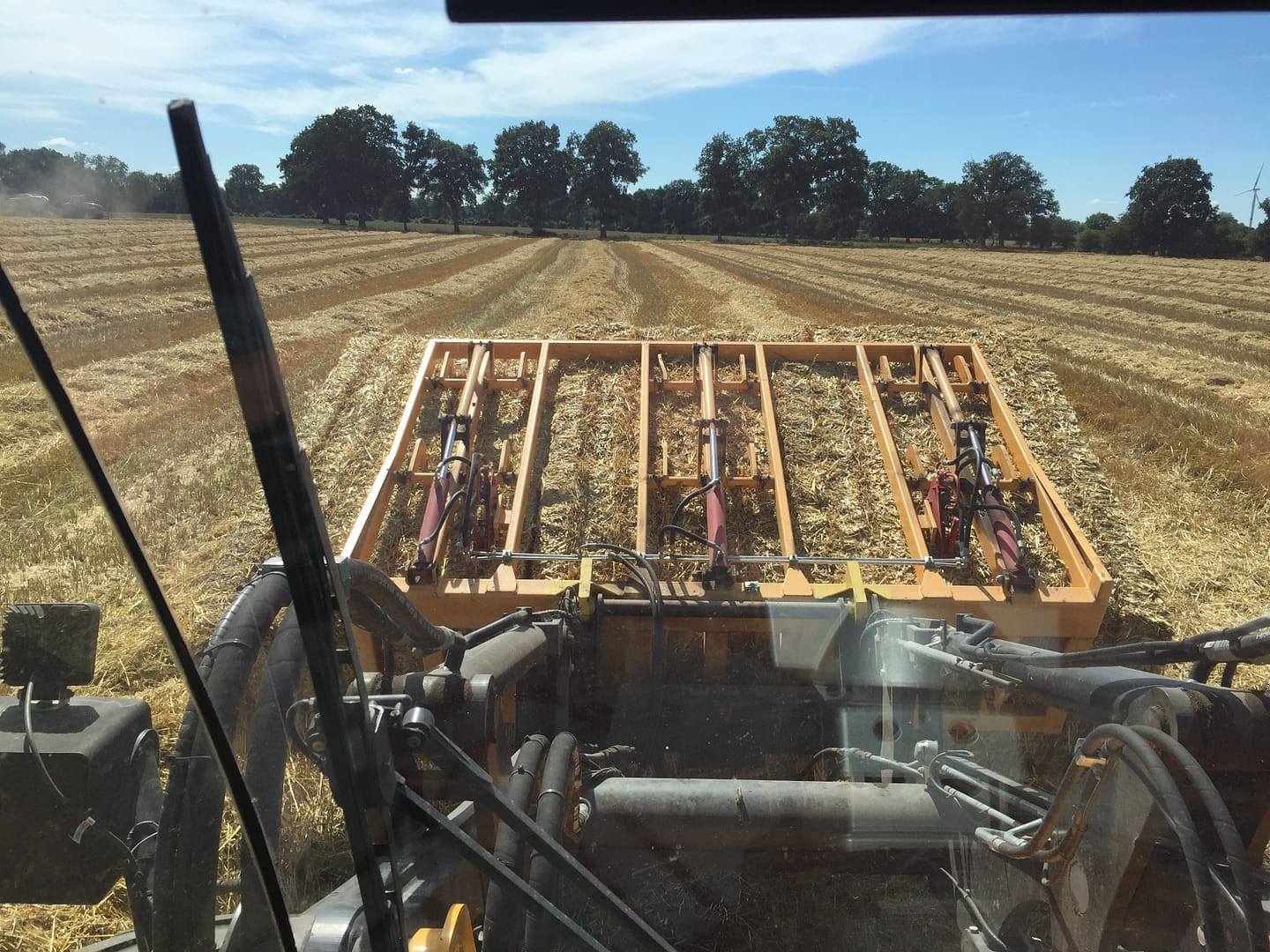

The Rambo 3 bale grab is a hydraulic attachment designed for lifting and transporting three large rectangular bales in longitudinal orientation. Connection to the hydraulic system of a telehandler, front loader, wheel loader or crane is standard. The fixed frame design does not include a folding mechanism, ensuring maximum structural stability. This model is less suitable for use on sloped terrain due to reduced clamping force under inclination.
Thanks to its rigid frame and individual clamping force control, the Rambo 3 is particularly suited for efficient bale handling during fieldwork or loading operations.
Suitable for
The Rambo 3 is engineered for controlled lifting and unloading of large straw or hay bales. In its standard configuration, the grab handles three bales with a width of one hundred twenty centimetres in lengthwise orientation. If other bale dimensions are required, Meijer Holland provides customised versions on request.
Equipped with
- Twelve specially contoured hooks made of hardened steel
- Two hydraulic dividers for individual clamping force per bale
- One hydraulic cylinder operating four hooks per bale side
- Fixed frame without folding functionality
Advantages of the Rambo 3 Bale Grab
The hooks penetrate deeply into each bale and draw them tightly against the main frame. Even with bales of irregular shape or density, the load remains stable during transport. Independent clamping per bale ensures maximum control during every handling cycle.
Its direct function, combined with a straightforward and durable design, allows for quick processing with minimal downtime. When used with automatic bale stacking systems, the overall field workflow becomes even more efficient.
Options for the Rambo 3 Bale Grab
- Detachable mounting components for various machine types
- Two hydraulic hoses with couplings
- Pressure relief valve for hydraulic system protection
Contact & Manual
For technical specifications, custom solutions or additional inquiries, please contact Meijer Holland.
📄 Download the manual
📞 Call us: +31 (0)50 – 3126448
📧 Email: info@meijerholland.com
✒️ Or fill in the contact form
Reference
Agricultural contractor Erhard Meyer at Hude, Germany
