Description Rambo 6K foldable bale grab

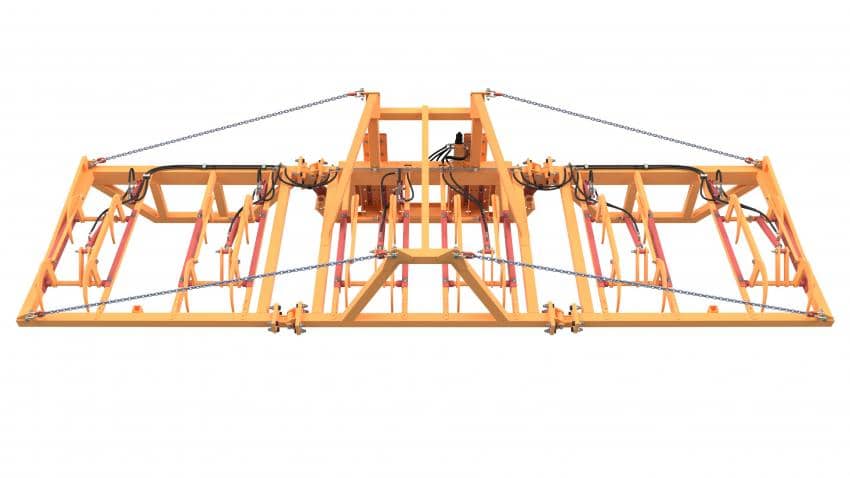

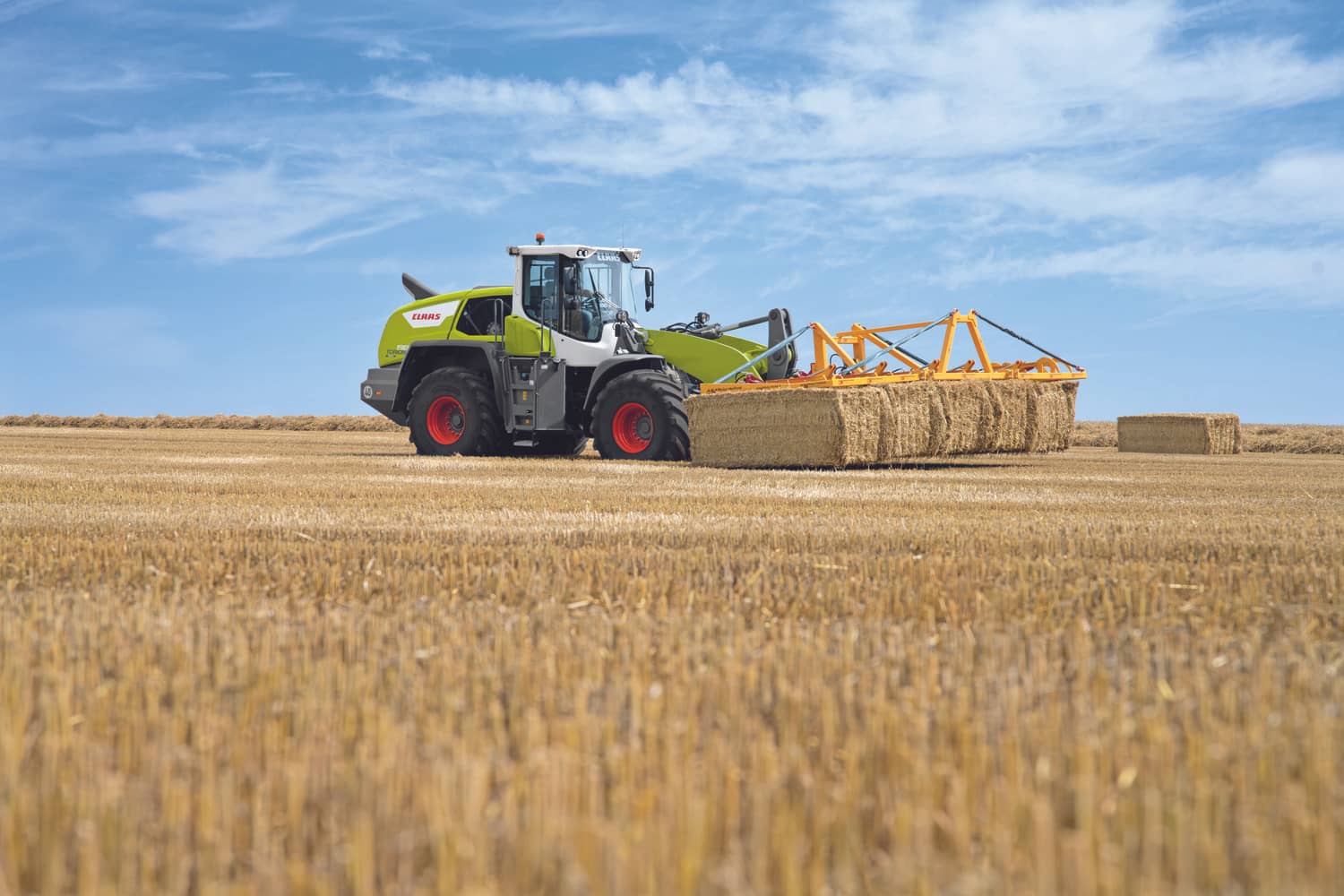

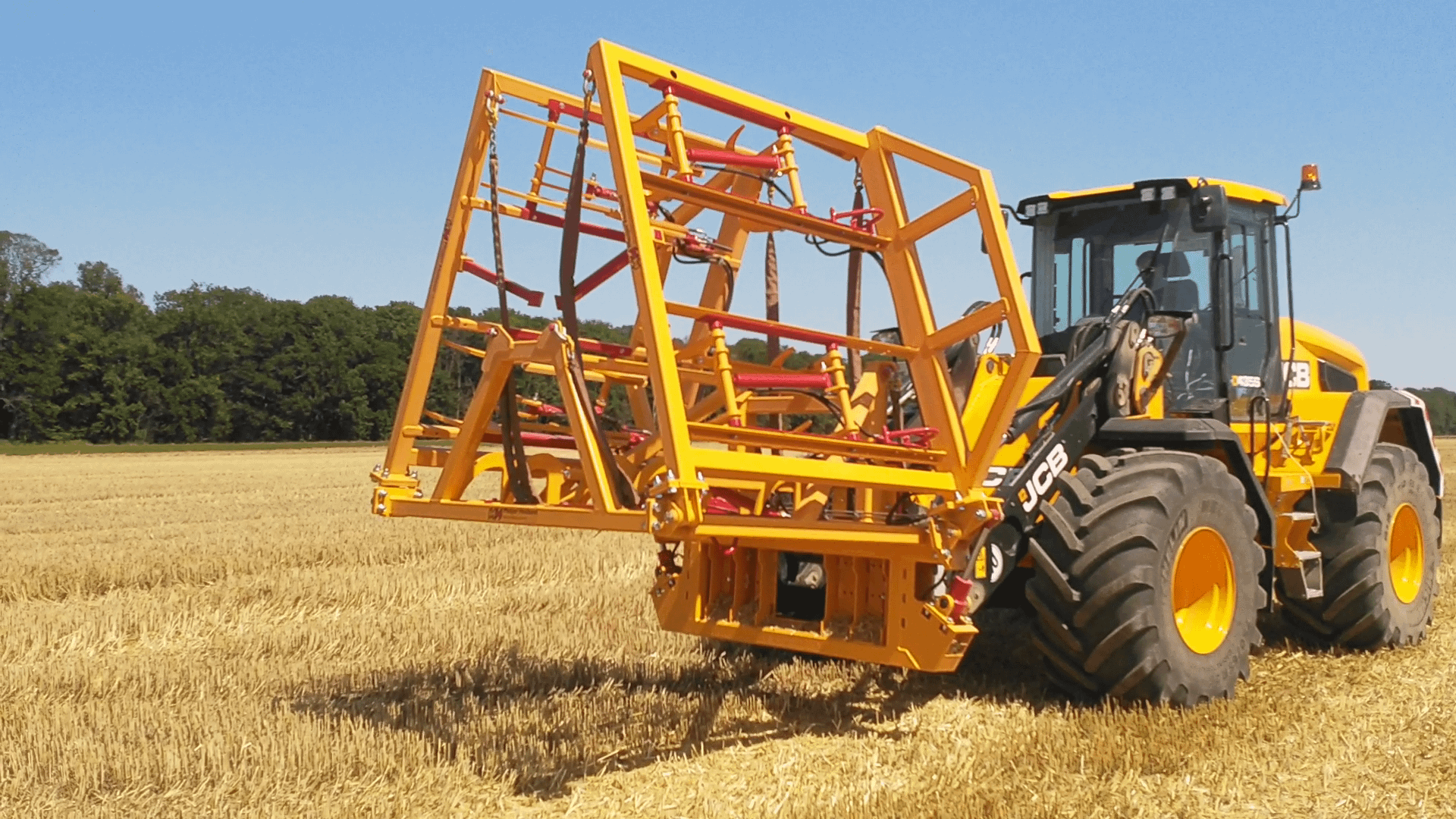

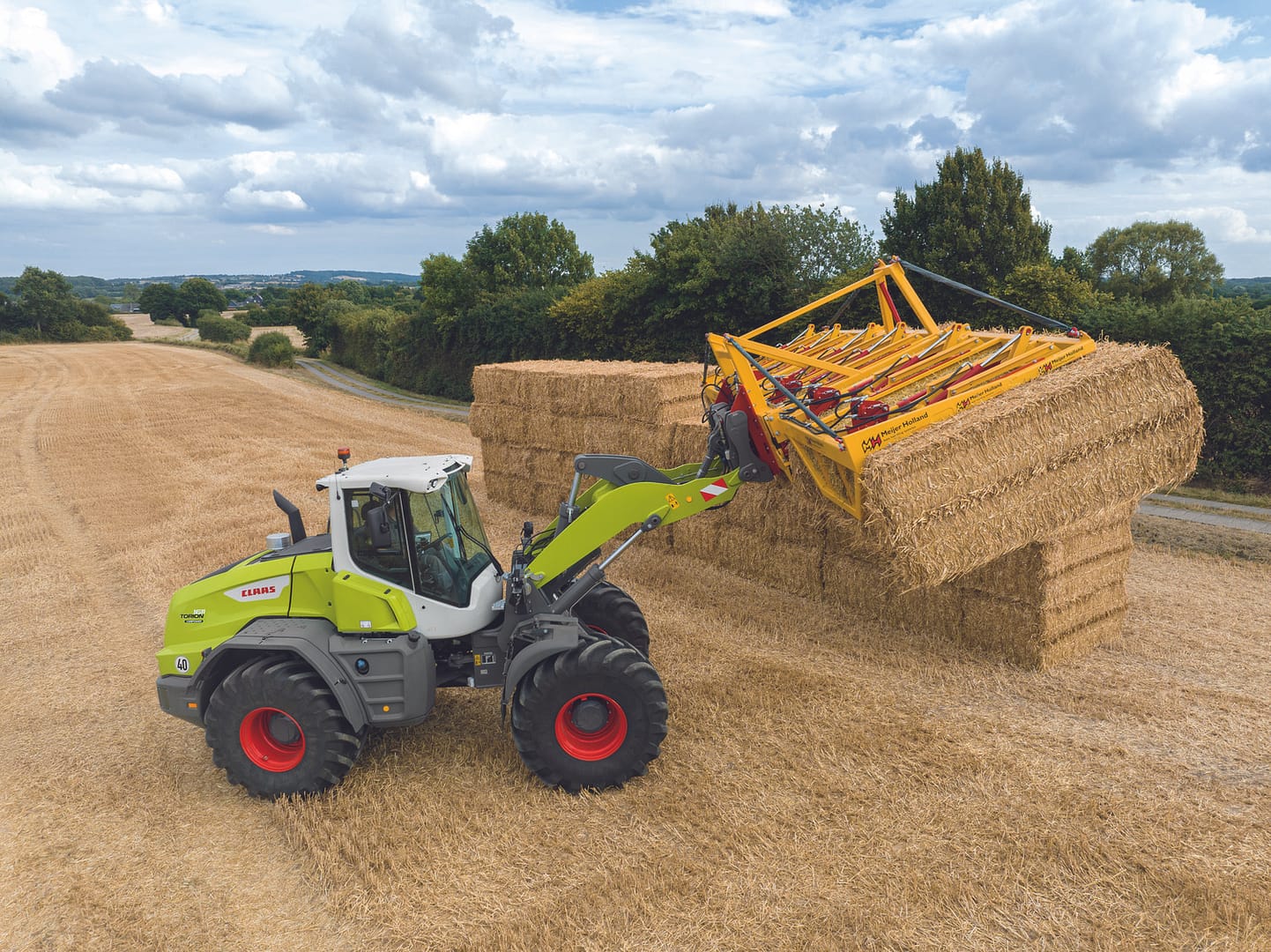

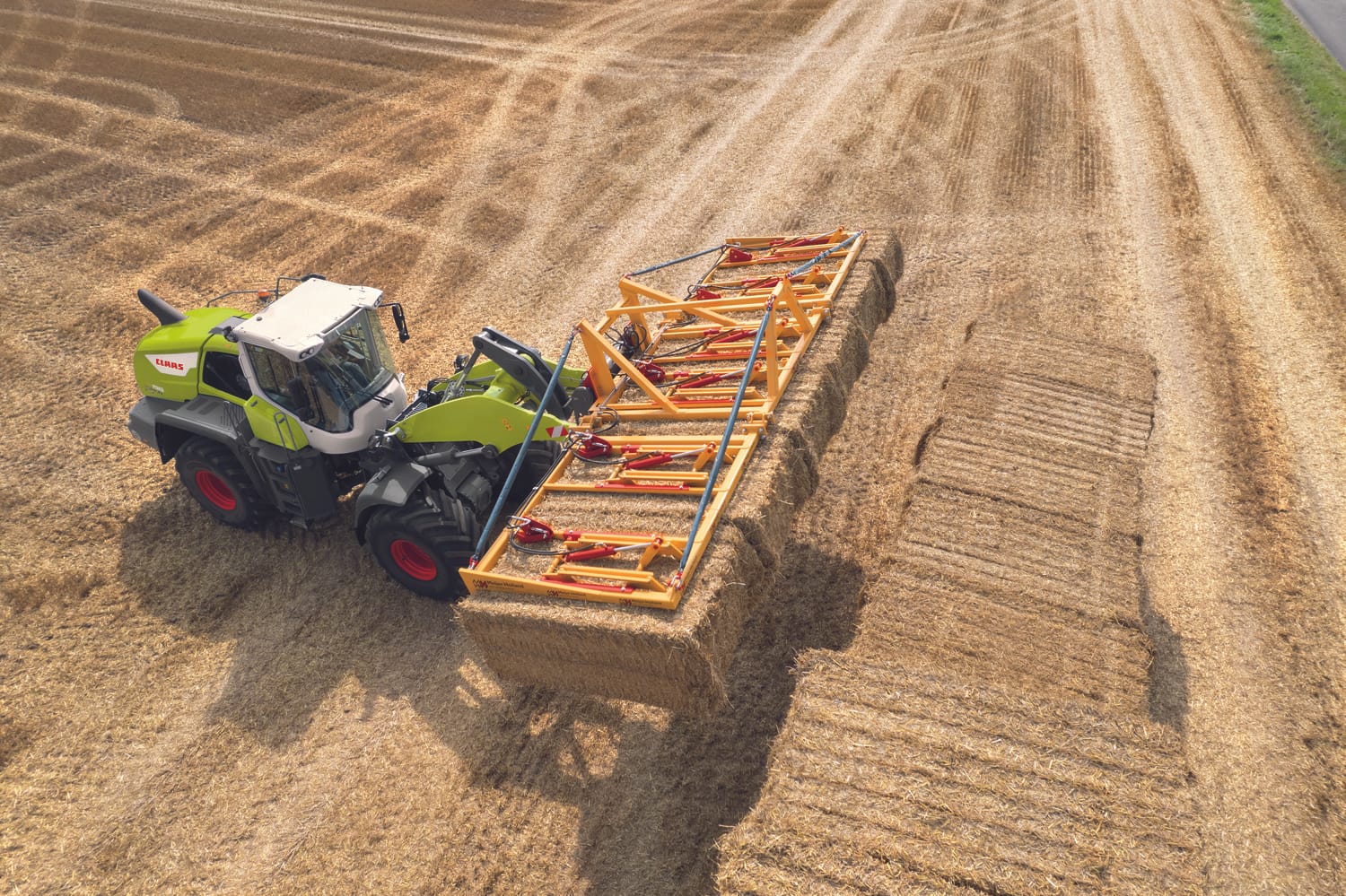

The Rambo 6K bale grab picks up a maximum of six large straw or hay bales longways and has a folding main frame. The bales are handled in the longitudinal direction of the machine.

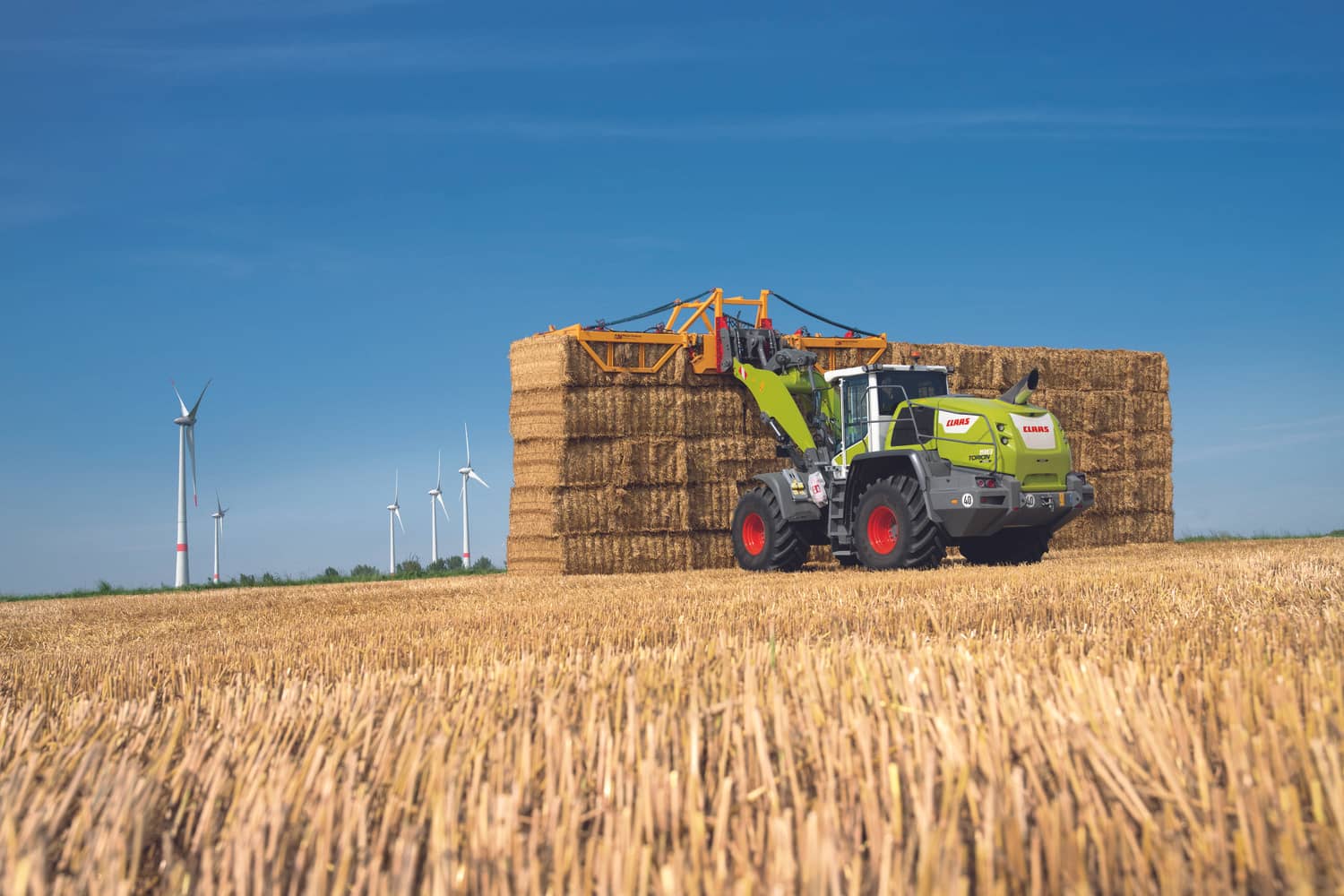

The grab is very strong and is only used in combination with a heavy wheel loader from approx. 14 tons. The grab is connected to the hydraulic system of the wheel loader and is not suitable for use on slopes.
Suitable for
- Unloading bales
- 6 bales of 120 cm wide
Performed with

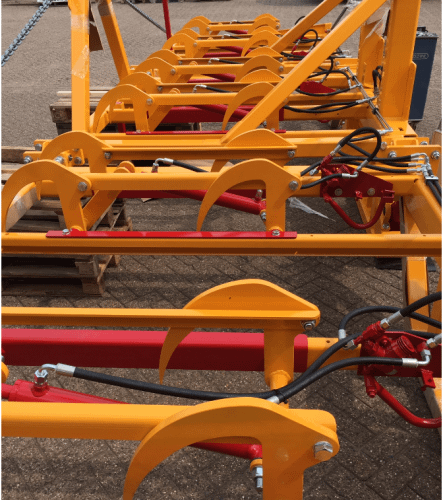

- 24 specially developed hooks made of high quality steel
- 5 hydraulic automatic valves give the possibility that the bales can be grabbed separately

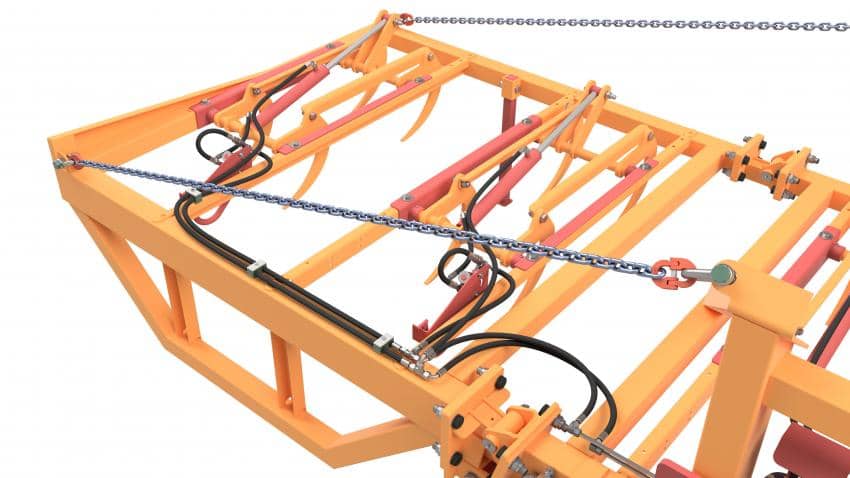

- 1 cylinder and 4 hooks for each bale
- Overpressure relief valve
- 6/2 valve 24DC for switching between folding and gripping the bales (excl. cabling and control)
Advantages of Rambo 6K bale grab
- The hooks turn deeply into the bales, clamp and pull them tight against the main frame
Options for Rambo 6K bale grab
Available with the following options.
- Removable brackets
- 2 hydraulic hoses and couplings
