Description Windrow HVM bale collector

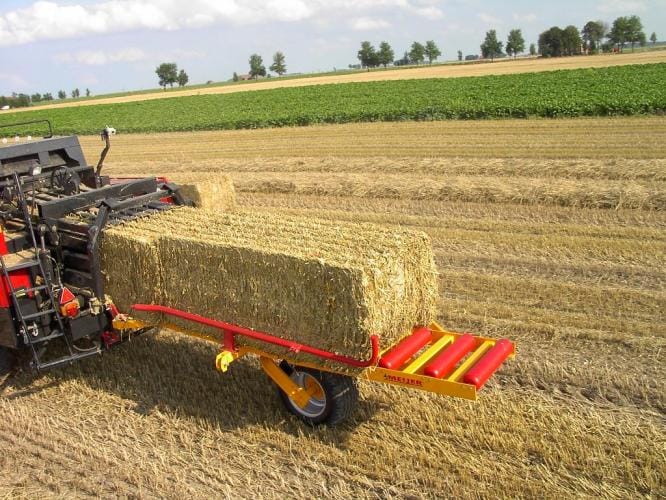

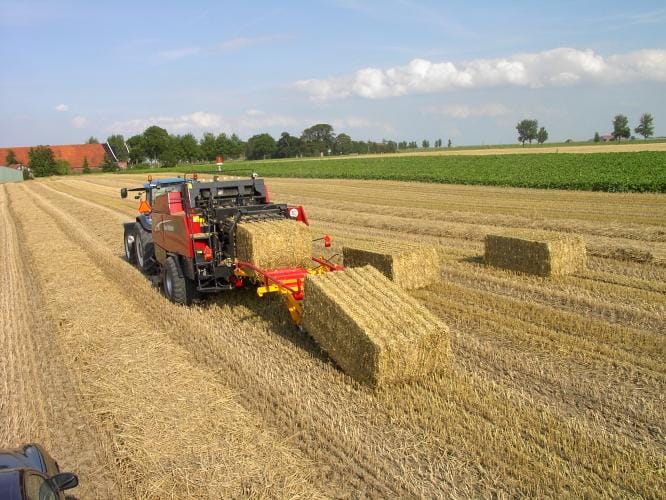

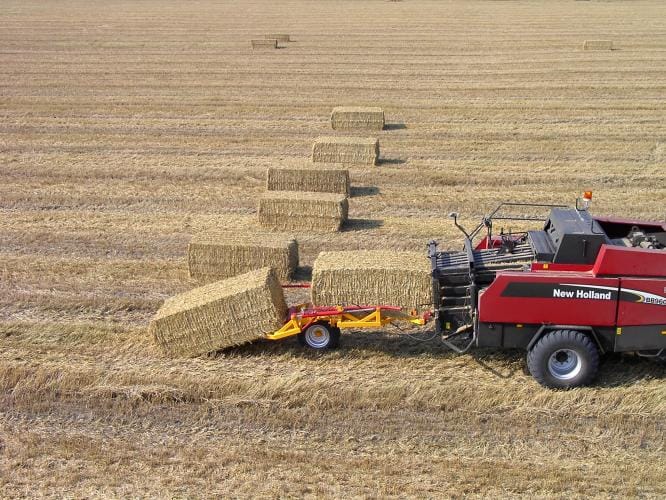

Connected at the back of the press the Windrow HVM bale collector will put your bales of separate rows in 1 line, making it more efficient to collect them driving cross wise.
Bale dimensions
- 120 cm wide
- 240 cm long
- 70 till 90 cm high
Advantages
- efficient processing of bales, because they are in 1 line on the field
- less driving on the field, giving a better structure
Process
The bale is coming out of the press to the roller conveyor of the Windrow HVM. The final 1.5 meters of the roller conveyor can be tilted, so this bale can be discharged. As soon the bale reaches the back side of the roller conveyor, it will pass a sensor giving a signal to the cabin, telling the driver he can discharge the bale. After the sensor is an extra buffer of 1.2 meters to go on with the pressing, giving you the time to put the bales in one line of the several rows. To discharge the bale, the driver operates a handle inside the cabin.
